Fritsch Milling and Sizing

Sieving

EVERYTHING YOU NEED FOR SIEVING

The FRITSCH sieve shakers are the answer to typical sieving tasks found in the laboratory. The benchtop ANALYSETTE 3 PRO, SPARTAN and the floor model ANALYSETTE 18 are for dry and wet, sieving from 20 g up to 15 kg. Three well-designed instruments for every application, make the work simple and fast. Easy to operate, reliable and long-lasting with extensive accessories and AUTOSIEVE analysis software.

csm_A-3_PRO_dc0edbee8f

ANALYSETTE 3 PRO

Vibratory Sieve Shaker

Precise Sieving with Automatic Amplitude Control

The advanced Vibratory Sieve Shaker, ANALYSETTE 3 PRO offers everything you need for fast particle size distribution testing in the laboratory. Use for fast QC/QA of incoming and outgoing products, offers user-friendly operation and is low-noise, robust and long-lasting. Perfect for quantitative particle size analysis of all types of solids and suspensions. Dry or wet sieving options expand capabilities in the lab with a range of woven test sieves. Compatible with test sieves made of stainless steel according to ASTM E11 mesh and according to ISO 3310-01.

The shaking sieve base with an electromagnetic drive oscillates the sieve stack into regulated vertical oscillations. Sieve sample quantities up to 2 kg with a measurement range from 20 μm to 63 mm.

Automatic amplitude control, with programming, delivers the ability to be used as a calibratable and validatable test instrument. Test equipment monitoring according to ISO 9001 and much more.

IDEAL FOR:
Sieving / Measuring the Quantitative Particle Size Distribution of Solids and Suspensions / Separating / Fractioning

csm_A-3-SPARTAN_e438cee5aa

ANALYSETTE 3 SPARTAN

Vibratory Sieve Shaker

Sieving for All Tasks

The hardworking standard model for typical sieving tasks in the laboratory with optical adjustment of the amplitude on the running instrument. Complete with the sieve stack tensioning system EASYTWIST and the possibility of data exported to a PC for sieve analysis using the FRITSCH AUTOSIEVE software trial.

The ANALYSETTE 3 SPARTAN is suitable for quantitative particle size analysis of solids and suspensions of all kinds through dry or wet sieving with woven test sieves. Compatible with test sieves made of stainless steel according to ASTM E11 mesh and according to ISO 3310-01.

Convertible into a micro mill for fine comminution of dry laboratory samples, solids in suspension, temperature sensitive materials with LN2, and for homogenization of emulsions or pastes.

IDEAL FOR:
Sieving / Measuring the Quantitative Particle Size Distribution of Solids and Suspensions / Separating / Fractioning / Cryo Milling

csm_A-18_92bc2a36a5

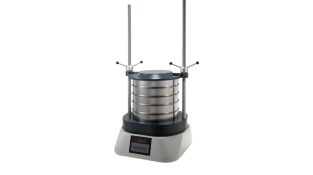

ANALYSETTE 18

Heavy Duty Analytical Sieve Shaker

Sieving of Large Volumes

The ANALYSETTE 18, Heavy Duty Analytical floor model Sieve Shaker from FRITSCH. Effortlessly sieve up to 15 kg of material between 20 μm and 125 mm. The three-dimensional sieving motion ensures fast sieving results without manual re-sieving, with optimal reproducibility.

The ANALYSETTE 18 is used for particle size analysis and portioning of coarse-grained materials. The maximum input quantity of 15 kg of material to be sieved and the sieve stack can be used in pilot line production or for serial analysis of large quantities.

For particle size analysis and portioning of coarse-grained materials through dry sieving or wet sieving with conversion kit.

IDEAL FOR:
Sieving / Measuring the Quantitative Particle Size Distribution of Solids and Suspensions / Separating / Fractioning

USA Headquarters
FRITSCH Milling and Sizing, Inc.

57 Grant Drive, Suite G
Pittsboro, NC, 27312

Phone + 1 919 229 0599
Email: info@fritsch-us.com

Send us your sample. We conduct a sample grinding and recommend the right device for your application.

FREE SAMPLE SUBMISSION AND APPLICATION REVIEW

Sent us a sample submission to find the perfect instrument configuration for your application.

FRITSCH offers a wide selection of high-performance mills, particle size and shape analysis instruments in various product groups for every application and every specific need: Planetary Mills, Ball Mills, Cutting Mills, Knife Mill, Rotor and Beater Mills, Jaw Crushers, Disk Mills, Mortar Grinders, Laser Particle Analysis, Dynamic Image Analysis, Sieving, Sample Feeding & Dividing.
